Silicone Rubber Fiberglass

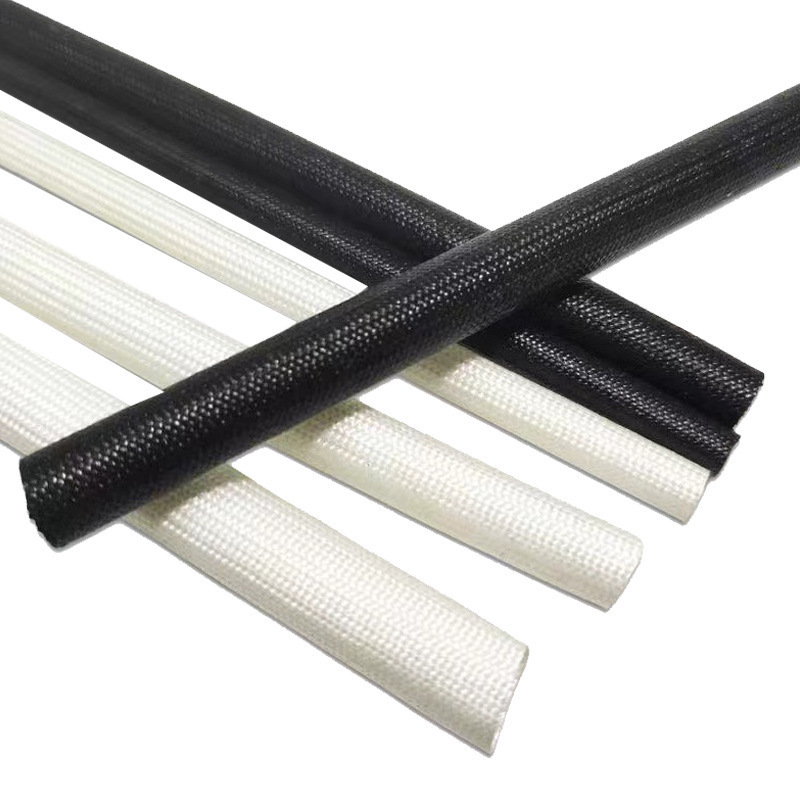

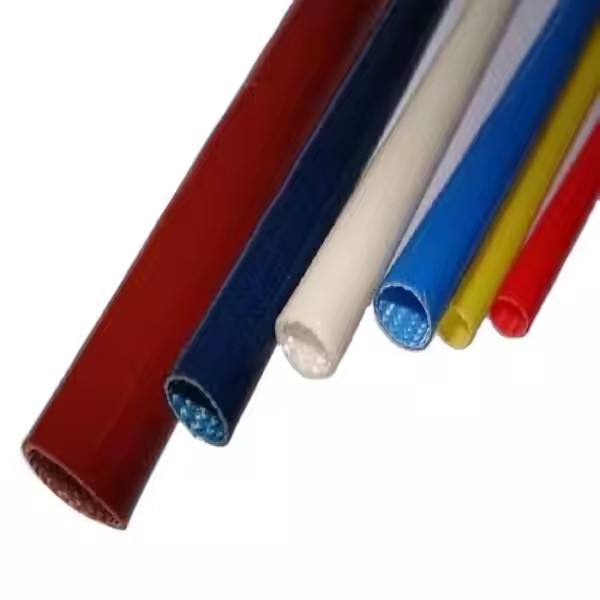

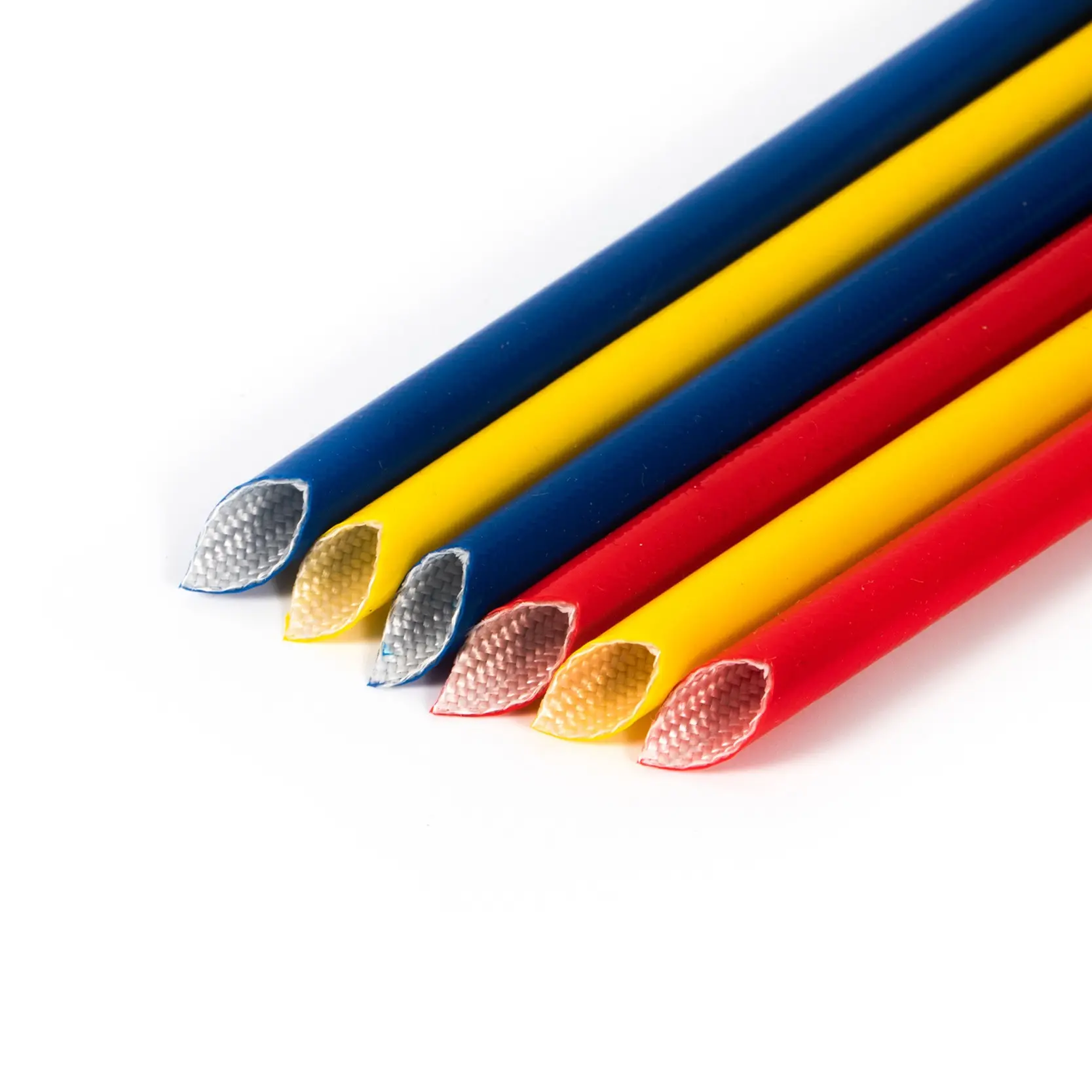

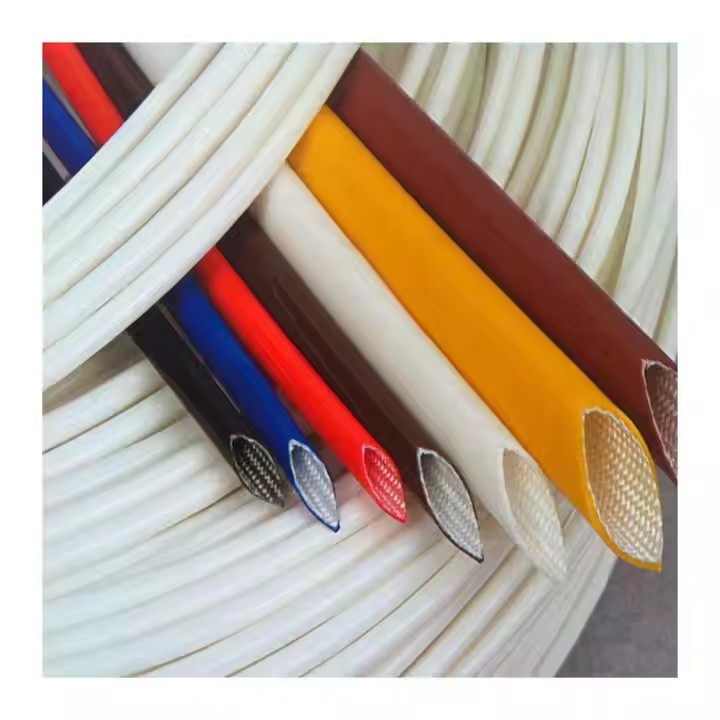

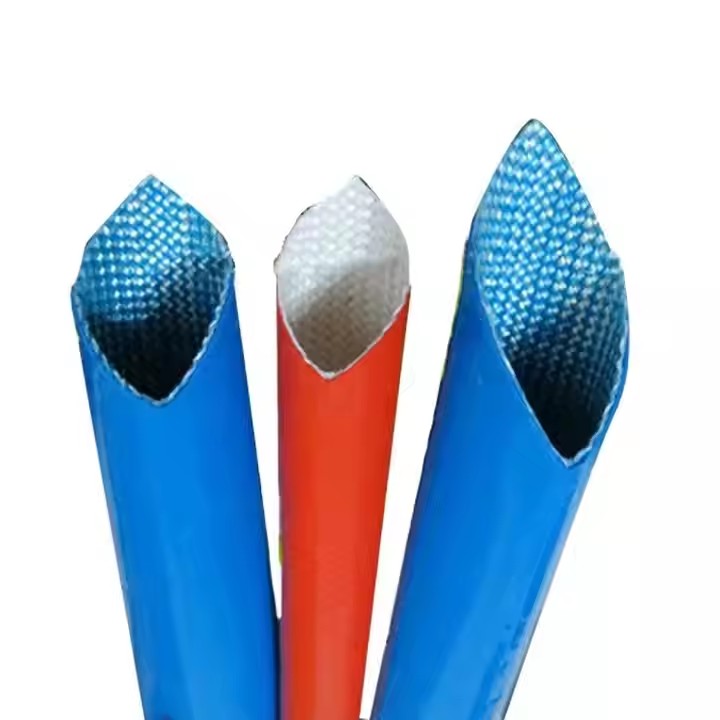

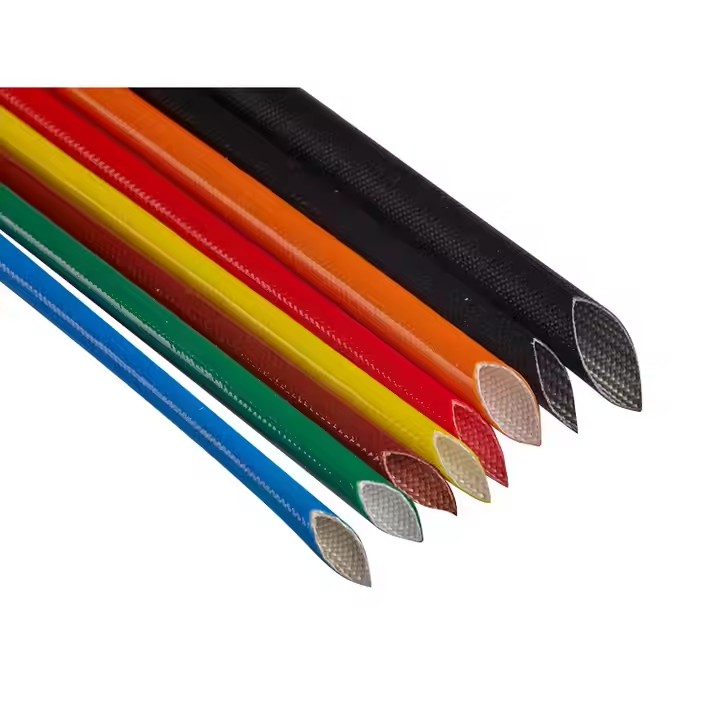

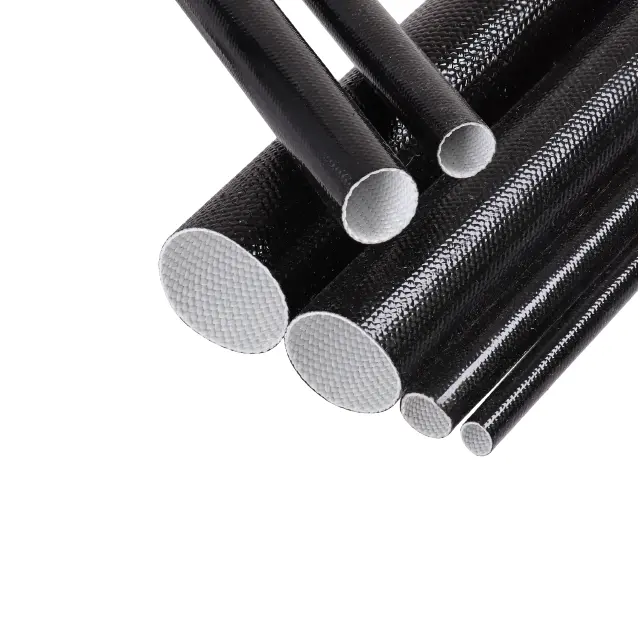

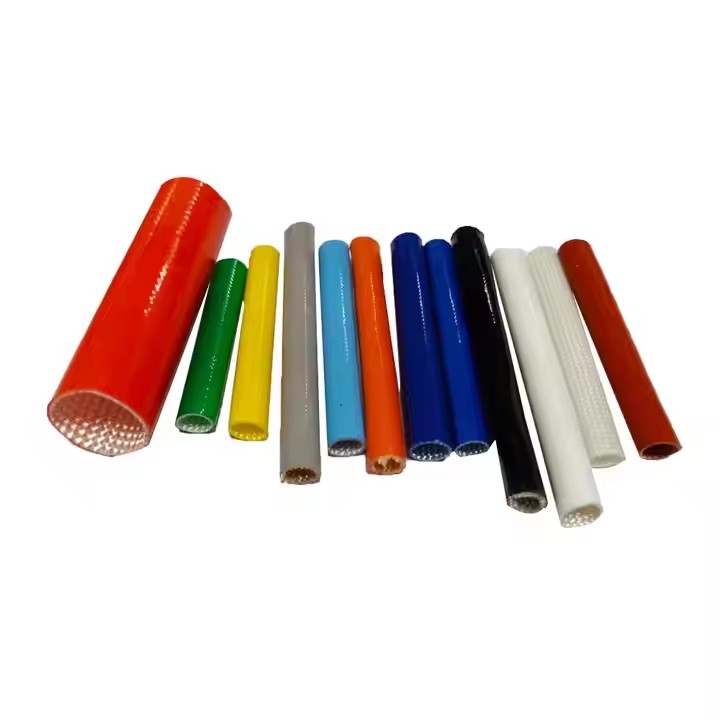

Silicone Rubber Fiberglass Sleeve
Silicone rubber fiberglass sleeve is made of alkali-free glass fiber yarn woven into a tube and coated with silicone rubber at high temperature. It has better dielectric properties, self-extinguishing properties and softness than silicone resin fiberglass sleeves. It is widely used in electrical appliances, lighting, automotive motor insulation, household appliances, wiring harnesses, electric heating equipment, televisions and electronic instruments (new energy), electric heating products, steel smelting and other electrical products.
Technical indicators: Volume resistance: 10″Ωcm Self-extinguishing time: 30 seconds
| Model | Condition | Flame resistance | Temperature resistance | Average voltage | Value | ||
| JC-SGS-15 | UL1441 | UL VW-1 | -10℃+200℃ | 1500V | 1200V | ||
| JC-SGS-25 | UL1441 | UL VW-1 | -10℃+200℃ | 2500V | 2000V | ||
| JC-SGS-40 | UL1441 | UL VW-1 | -10℃+200℃ | 4000V | 3000V | ||
| JC-SRS-70 | UL1441 | UL VW-1 | -10℃+200℃ | 7000V | 5000V | ||
| 项目ITEM | 性能指标VALUE | ||||||
| 连续使用温度范围Continuous Operating | -10℃+200℃ | ||||||
| 耐温性Temperature Endurance | 200℃±2℃ 168 hours ≥1/2 original voltage value | ||||||
| 热老化 Aging Test | 250℃, 8 hours, no cracks | ||||||
| 冷弯曲Cold Bend | No cracks | ||||||
| 水平燃烧Horizontal Flame Test | ≤30 second | ||||||
| 燃烧(VW-1)Flame Retardance | ≤30 second | ||||||
| 体积电阻Volume Resistivity | 10″Ωcm | ||||||
HUAXUAN-LX-904
